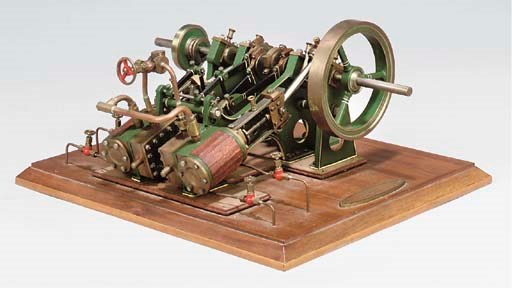

A model twin cylinder inclined reversing paddle engine,
built to the design of E. Westbury with wood lagged cylinders ¾in. bore x 1½in. stroke, drain valves and pipes, inlet manifold with main stop valve, pierce connecting rods, marine-type big ends, eccentric driven feed pump, Stephenson's link reverse (not connected), spoked and disc (?) flywheels, finished in green and polished brightwork, wood base with brass plate embossed Ships Paddle Engines bore ¾in. stroke 1½in. -- 17.8 x 38.2cm. (7 x 15 in.)
