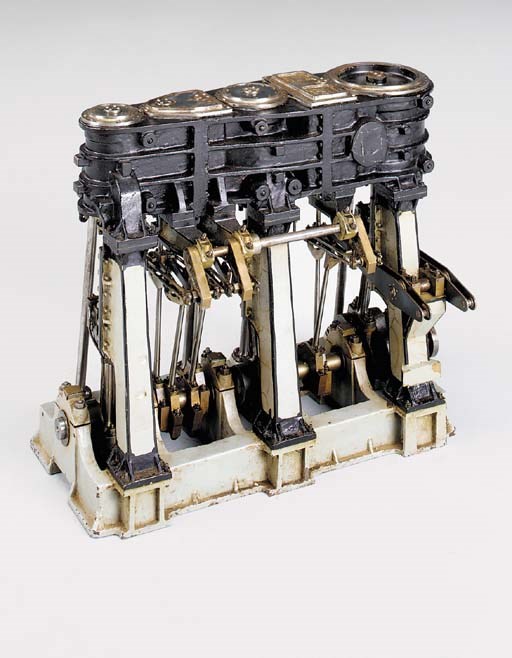

A well engineered partially complete model four pillar vertical reversing triple expansion marine engine,
with unlagged 1½in., 2 1/8in. and 3½in. bores x 2½in. stroke, H.P. piston valve 1.P. & .P. slide valves with Stephenson's link gear, studded stuffing boxes, rear frame incorporated slipper type crosshead guides, L.P. crosshead driven levers for air and feed pumps, oil boxes and pipes to big end bearings, oil pots six main bearings, shaped cranks and shaft coupling, finished in black grey and polished brightwork --15 x 19in. (38 x 48.3cm.). Drawings.
See Colour Illustration
