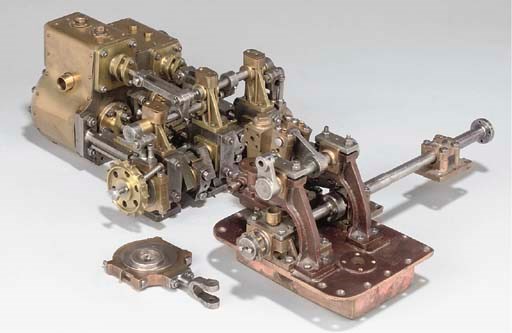

A full size transverse slip-eccentric reversing horizontal compound steam canoe engine, circa 1870,
成交價
GBP 1,080
更多資訊
A full size transverse slip-eccentric reversing horizontal compound steam canoe engine, circa 1870,
with brass clad cylinders 1½in. and 3in. bores x 1½in. stroke, bronze central admission piston valves running in bronze liners, provision for draincocks, gunmetal crosshead slippers sliding on three squared guide columns supporting cylinder block away from three separate main bearings with individual rocker shafts controlled through externally mounted slip-eccentrics. The after LP end is provided with a gunmetal chain sprocket and further mounted eccentric driving the condensor unit, with vertical air pump, horizontal feed pump, early surface condensor and propeller shaft thrust block coupled so as to run parallel to the crankshaft adjacent to the centre axis of the engine. Finished in brightwork -- 9in. high x 10¼in. (across ships) 17in. (fore and aft) (3)
with brass clad cylinders 1½in. and 3in. bores x 1½in. stroke, bronze central admission piston valves running in bronze liners, provision for draincocks, gunmetal crosshead slippers sliding on three squared guide columns supporting cylinder block away from three separate main bearings with individual rocker shafts controlled through externally mounted slip-eccentrics. The after LP end is provided with a gunmetal chain sprocket and further mounted eccentric driving the condensor unit, with vertical air pump, horizontal feed pump, early surface condensor and propeller shaft thrust block coupled so as to run parallel to the crankshaft adjacent to the centre axis of the engine. Finished in brightwork -- 9in. high x 10¼in. (across ships) 17in. (fore and aft) (3)
A full size transverse slip-eccentric reversing horizontal compound steam canoe engine, circa 1870,
with brass clad cylinders 1½in. and 3in. bores x 1½in. stroke, bronze central admission piston valves running in bronze liners, provision for draincocks, gunmetal crosshead slippers sliding on three squared guide columns supporting cylinder block away from three separate main bearings with individual rocker shafts controlled through externally mounted slip-eccentrics. The after LP end is provided with a gunmetal chain sprocket and further mounted eccentric driving the condensor unit, with vertical air pump, horizontal feed pump, early surface condensor and propeller shaft thrust block coupled so as to run parallel to the crankshaft adjacent to the centre axis of the engine. Finished in brightwork -- 9in. high x 10¼in. (across ships) 17in. (fore and aft) (3)
with brass clad cylinders 1½in. and 3in. bores x 1½in. stroke, bronze central admission piston valves running in bronze liners, provision for draincocks, gunmetal crosshead slippers sliding on three squared guide columns supporting cylinder block away from three separate main bearings with individual rocker shafts controlled through externally mounted slip-eccentrics. The after LP end is provided with a gunmetal chain sprocket and further mounted eccentric driving the condensor unit, with vertical air pump, horizontal feed pump, early surface condensor and propeller shaft thrust block coupled so as to run parallel to the crankshaft adjacent to the centre axis of the engine. Finished in brightwork -- 9in. high x 10¼in. (across ships) 17in. (fore and aft) (3)
No VAT will be charged on the hammer price, but VAT at 15% will be added to the buyer's premium which is invoiced on a VAT inclusive basis.
This lot is subject to storage and collection charges.
**For Furniture and Decorative Objects, storage charges commence 7 days from sale. Please contact department for further details.**
